SPECIFICATIONS
FEATURES (Optimise Efficiency. Maximise Profitability.)
POWERFUL & EFFICIENT HYUNDAI D4DD ENGINE
The powerful 70 kW engine is made to deliver superior performance while also offering unequalled fuel economy. It is also compliant with EPA Tier-III and EU-stage IIIA emission regulations.

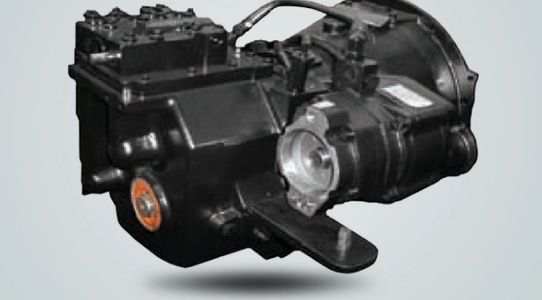

AUTO TRANSMISSION
2-stage forward and 2-stage backward powershift transmission provides fast travel speed and makes less noise even when carrying heavy loads. The clutch protection system prevents excessive use of inching as well as enables smoother gear shifting.
BOOSTING-TYPE BRAKE VALVE FOR STRONGER BRAKING
The highly advanced brake valve provides strong braking performance, so the operator has better control over the machine.
SMOOTH POWER STEERING FOR BETTER MACHINE OPERABILITY
The fully hydrostatic power steering allows for effortless control of the machine while driving. As a result, it increases operator’s convenience and productivity.
COMFORTABLE OPERATION
FASTER TRAVEL SPEED & IMPROVED GRADEABILITY
The machine’s powerful engine provides faster travel speed (20.5 - 21.4 kmph) so you can complete work quickly. It’s improved gradeability (loaded: 13.5° - 20.5°) offers better convenience, even on slopes.
AUTOMATIC GEARBOX
During acceleration, when the speed crosses 7 kmph, the machine automatically switches into second gear. Similarly, when decelerating below 5 kmph, the machine accordingly shifts into first gear. The automatic transmission adds to the overall operating and driving experience.

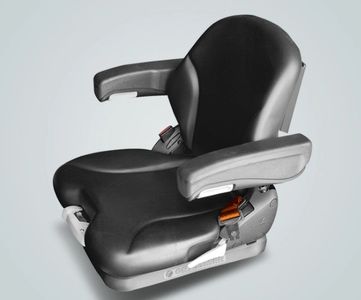

EASILY ADJUSTABLE SUSPENSION KAB SEAT
The super comfortable seat is designed with ergonomic considerations, thus increasing operator comfort and reducing fatigue. The Energy-Locking Retractor seat belt furthermore adds to the overall safety.
ADVANCED 5.6” LCD INFORMATION MONITOR
The operator can operate and maintain the machine in best way by easily viewing important information like speed, steer angle, travel direction, battery status, hour meter, working mode, system fault, and other such important data.
HIGH DURABILITY & ADVANCED SAFETY
IMPROVED VISIBILITY
The machine’s smart lift cylinder placement allows wide frontal visibility. While driving in reverse, the panoramic mirror provides additional assistance.
STRONG OVERHEAD GUARD
The quality and make of the safety overhead guard exceeds CEE and ANSI regulations and thus protects the operator from any hazard.
SAFETY LAMPS & REAR REFLECTORS
Halogen headlights and rear LED lights are installed to offer increased visibility during the night. Rear reflectors enhance safety for the driver and the machine

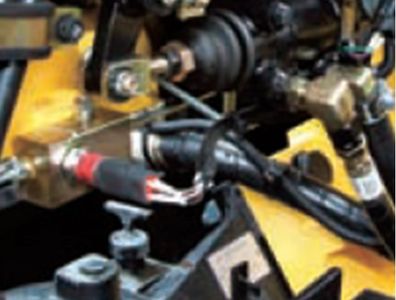

FORK SAFETY FEATURES FOR ACCIDENT PROTECTION
A safety valve controls the speed of the fork when it is lowered and prevents it from dropping down in case of sudden hydraulics failure.
EASY MAINTENANCE
EASILY ACCESSIBLE LARGE ENGINE HOOD
An ideal arrangement of component parts ensures fast access and convenience for maintenance. The enlarged air cleaner (8'') extends the service cycle of engine.

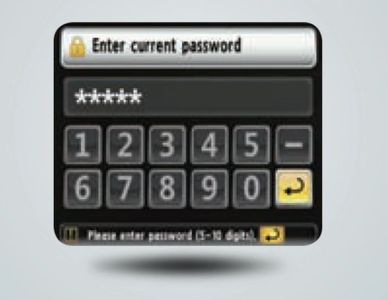

ANTI-THEFT SYSTEM
The machine comes with a Password Starting System, so only the authorised person can start the machine.
MAINTENANCE MANAGEMENT DISPLAY
A graphic display keeps the operator updated with the health of the machine’s components. Thus making it very easy to maintain the machine.
WATER & DUST-PROTECTED ELECTRICAL COMPONENTS
An additional protective cover is provided to protect the electrical components like fuse boxes and relay box from damage.
